Aluminum Clamps for Fixing Solar Panel Mounting Solar Brackets

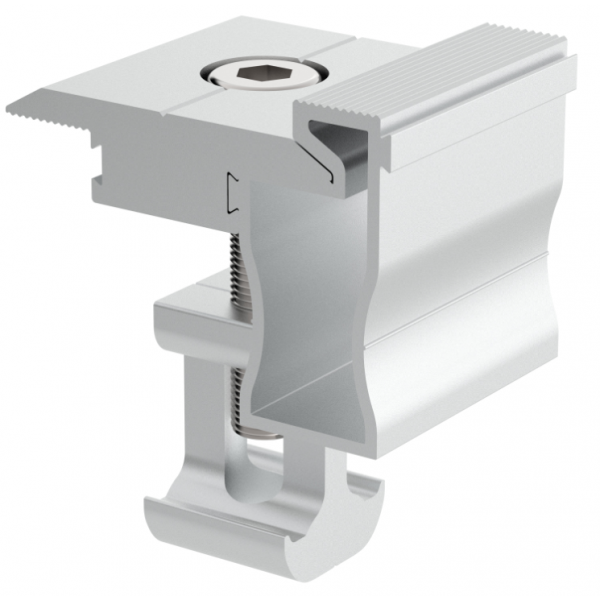

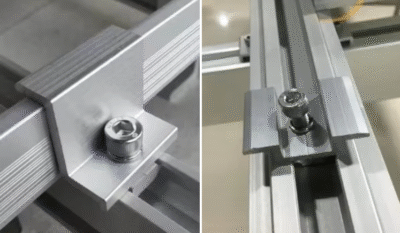

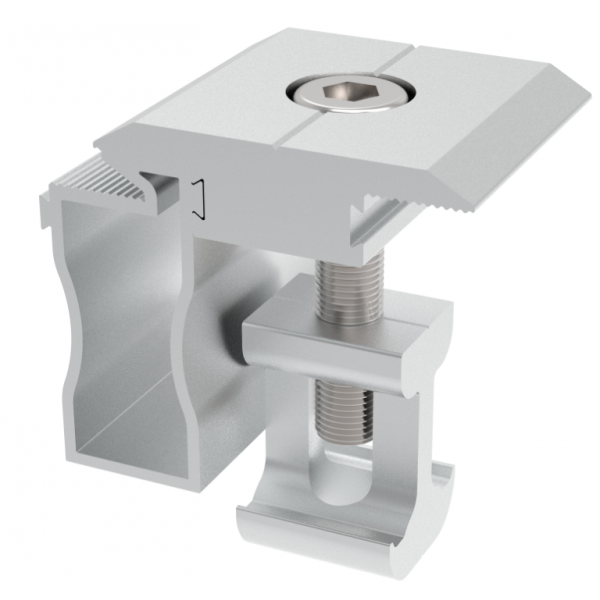

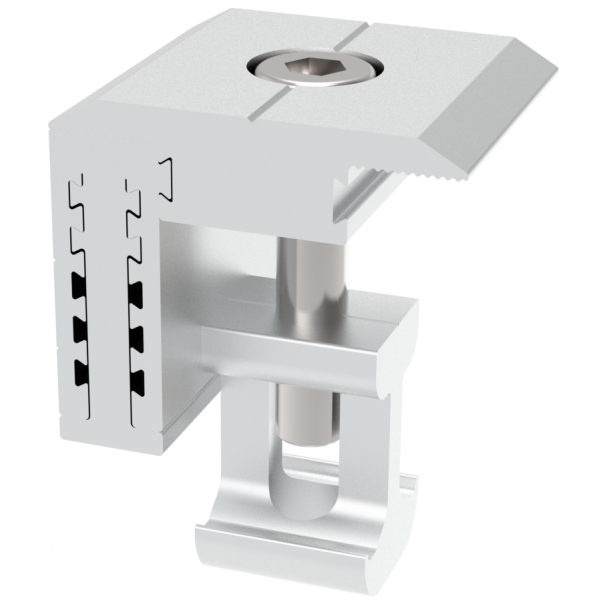

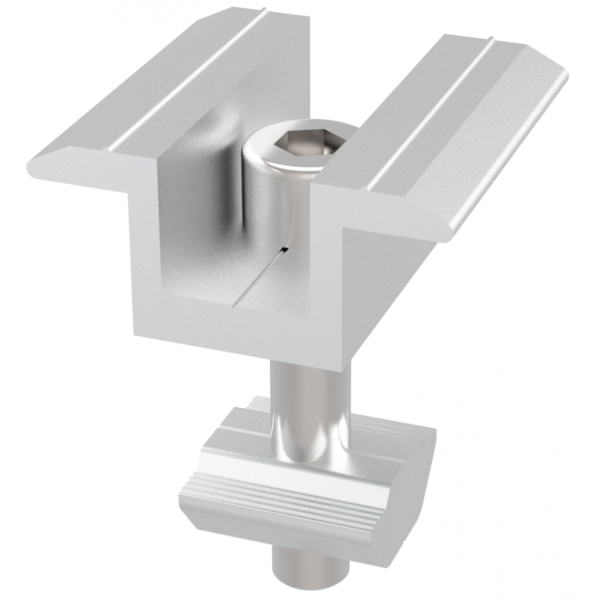

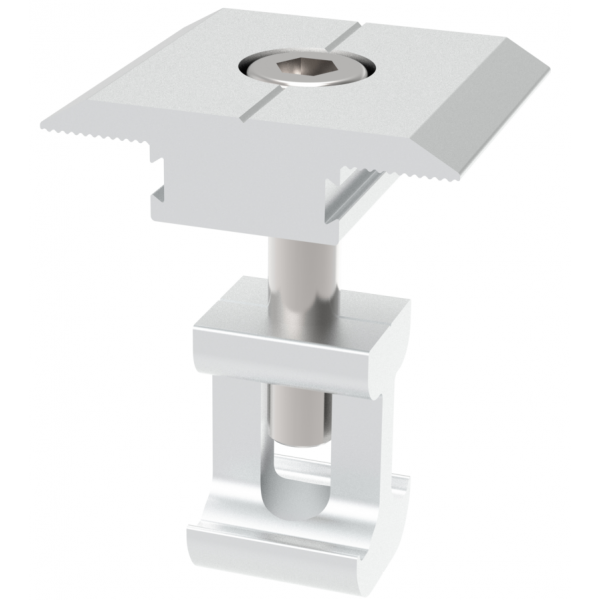

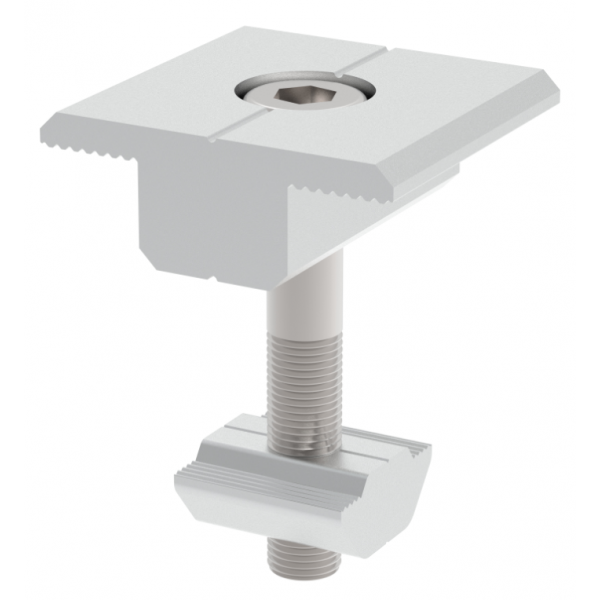

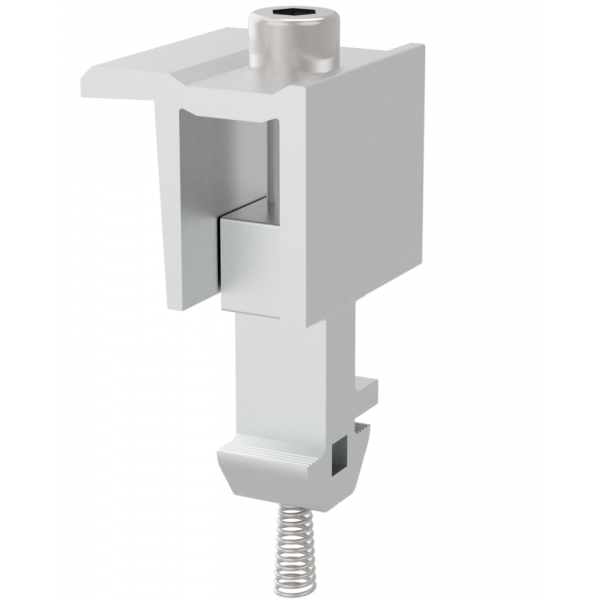

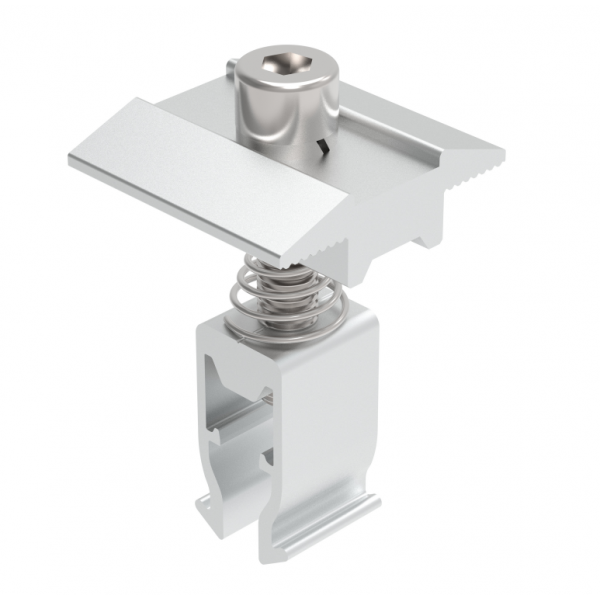

Mid Clamp & End Clamp for Solar Panel Bracket

The Aluminum Solar Clamp is a critical component of a photovoltaic mounting system, designed to secure the outermost rails and components of a photovoltaic array.

It not only serves as the mechanical termination point but also provides a solid foundation for the safe, stable, and long-term reliable operation of the entire system,

creating an unbreakable barrier for your photovoltaic power station.

☆Product Secification:

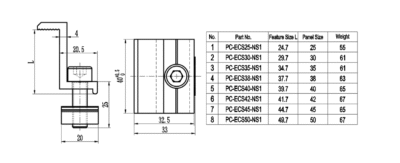

Product Drawing
BOM	G01-0040(AL6005-T5)x1 G91-0020(AL6005-T5)x1 M8*25 Hexagon socket head cap screws(SUS304)x1
Applicable Module	Framed or frameless panel
Roof clearance	Customized
Wind load	60m/s
Snow load	1.4KN/m2
Width of solar module	751 ≤ A ≤ 1313 mm
Thickness of solar module	20-50 mm
Adjustable angle range	15~50°
Matériel	AL6005-T5
Application	ground, balcony, railing, walls etc.
Garantie	10 years

☆Product Advantage：

Sturdy and Durable: High-quality aluminum alloy (6005-T5)for high strength, corrosion resistance, and long life.

Strong Locking Force: Unique anti-slip design ensures a secure, non-loose fit, and is wind and shock resistant.

Quick Installation: A streamlined design allows for easy alignment and installation, significantly improving installation efficiency.

Widely Compatible: Perfectly adapts to a variety of standard guide rails, making it an ideal choice for system integration.

☆Application:

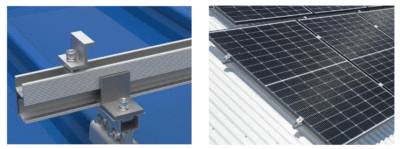

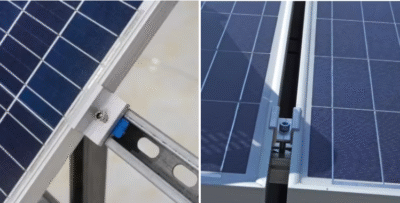

Adaptable to various installation scenarios: In various installation environments, such as ground, rooftop, and carport rooftops,

the center and end clamps can securely attach the edge solar panel to the corresponding supporting structure according to the specific installation structure

and requirements, ensuring a secure and reliable installation.

☆Delivery:

Delivery time for regular : 5-7 days ;

Deliverytime for customized: 15-25 days ;

Delivery term: EXW/FOB/ClF/CFR//DAP/DDP are available;We can find good forwarder for customer or accept appointed forwarder from customers.

☆Service & Support:

ALV is one combination of industry and trade company, and very professional with aluminum products in China.We are proud of our product quality and customer service and competitive price.And our products are sold worldwide.such as America, South America, Europe, Southeast Asia, Africa etc.

l)Professional sales team,One-to-one service

2)Combination of industry and trade company,to ensure the service and price

3)Experienced engineer team to offer professional technology service

4)Intimate after-sales service

5)Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
